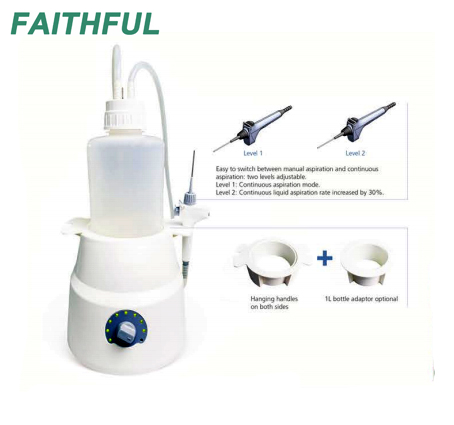

Economical Vacuum Aspirator Eco Vac

EcoVAC offers a compact & quiet, safe & efficient, and an affordable solution for the aspiration, collection and subsequent disposal of biological liquid waste, suitable for various applications. It is equipped with a 2L liquid bottle as standard, and an optional 1L liquid bottle.
Availability:
Quantity:
  • FAITHFUL

Description:

  • Small and compact, and it is fits on cabinet, bench and ground.

  • The handle operation is simple and flexible. It is easy to switch between manua aspiration and continuous aspiration mode. reducing hand fatigue and improving efficiency.

  • The hydrophobic filter prevents aerosol and liquid contamination.

  • lBrushless motor offers low noise and long life.

  • Different adapters are available to match a mutitude of laboratory supplies.

  • All parts that liquid flow can be autoclaved.

  • lProvides safe and efficient way to collect and contain biological liquid waste.


Vacuum range

0-500mbar

Aspirating speed

15L/min(air)

Flow rate [liquid]

17mL/s

Bottle

2L Standard,1L Optioral

Motor type

Brushless Motor

Input voltage

100-220VAC,50/60Hz

Dimension[W*D*H]

180×240×340 mm

weight

2.8kg

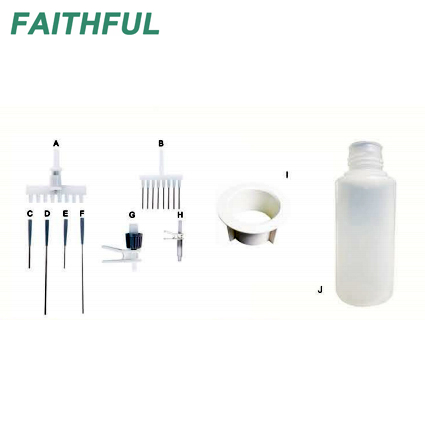

A

8-charnel tip detrusion adapter 200ul tip

B

8 charnel needle Φ1.5mm

C

Single needle Φ2.5mm,40mm

D

Single needle Φ2.5mm,120mm

E

Single needle Φ1.5mm,40mm

F

Single needle Φ1.5mm,120mm

G

tiptip detrusion adapter 200ul tip

H

tip detrusion adapter 1ml tip

I

1L bottle adapter

J

1L bottle
