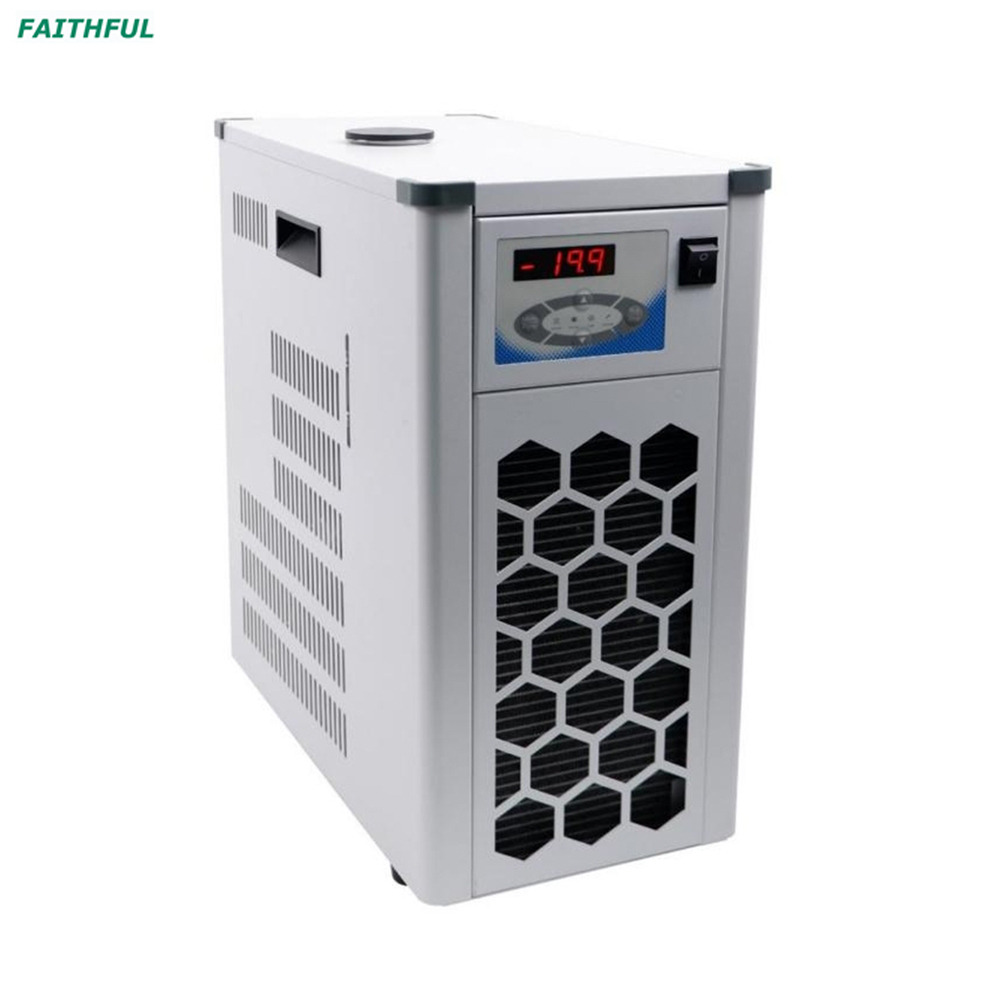

CCP5-Mini
Faithful
1.Small size, can be used directly on the desktop and in a fume hood;
2.Environmentally friendly rfrigerant, no toxic pollution;
3.Convenient liquid injection and drainage, intuitive liquid level window,
and the water tank is provided with a protective overflow port;
4.Maintenance-free pressure/suction pump, pump pressure and flow
automatically adapt to external loads;
5. PID temperature control and advanced proportional refrigeration
control technology greatly, temperature more stability;
6.The refrigeration system has high pressure protection and overcurrent
protection functions to prevent the compressor from overloading and
effectively protect the compressor;
7. When an alarm occurs, the light and sound will remind at the same time, and various alarm codes
will be displayed directly, which can directly determine the cause of the failure and the repair method.
1.Small size, can be used directly on the desktop and in a fume hood;
2.Environmentally friendly rfrigerant, no toxic pollution;
3.Convenient liquid injection and drainage, intuitive liquid level window,
and the water tank is provided with a protective overflow port;
4.Maintenance-free pressure/suction pump, pump pressure and flow
automatically adapt to external loads;
5. PID temperature control and advanced proportional refrigeration
control technology greatly, temperature more stability;
6.The refrigeration system has high pressure protection and overcurrent
protection functions to prevent the compressor from overloading and
effectively protect the compressor;
7. When an alarm occurs, the light and sound will remind at the same time, and various alarm codes
will be displayed directly, which can directly determine the cause of the failure and the repair method.
Model | CCP5-Mini |
Temperature Range | -20℃ to Ambient Temp |
Temperature Display | LED Display, Accuracy 0.1℃ |
Temperature Stability | ±0.3℃ |
Refrigerating Capacity | 700W |
Pump Pressure | 0.3bar |
Pump Suction | 0.2bar |
Pump Flow Max. | 22L/Min |
Tank Size | 4.5L |
Cooling Water Tubing | Silicone |
Communication Interface | Optional RS232/485 |
Low-level Alarm | Optional |
Heating Function | Optional |
Dimensions ( WxDxH ) | 220x420x495(mm) |
Operating Environment | 5-32 ℃ |
Outer Connected Dimension | Standard 8mm insulation tube |
Power supply | 220V/50Hz |
Model | CCP5-Mini |
Temperature Range | -20℃ to Ambient Temp |
Temperature Display | LED Display, Accuracy 0.1℃ |
Temperature Stability | ±0.3℃ |
Refrigerating Capacity | 700W |
Pump Pressure | 0.3bar |
Pump Suction | 0.2bar |
Pump Flow Max. | 22L/Min |
Tank Size | 4.5L |
Cooling Water Tubing | Silicone |
Communication Interface | Optional RS232/485 |
Low-level Alarm | Optional |
Heating Function | Optional |
Dimensions ( WxDxH ) | 220x420x495(mm) |
Operating Environment | 5-32 ℃ |
Outer Connected Dimension | Standard 8mm insulation tube |
Power supply | 220V/50Hz |
