Feature:

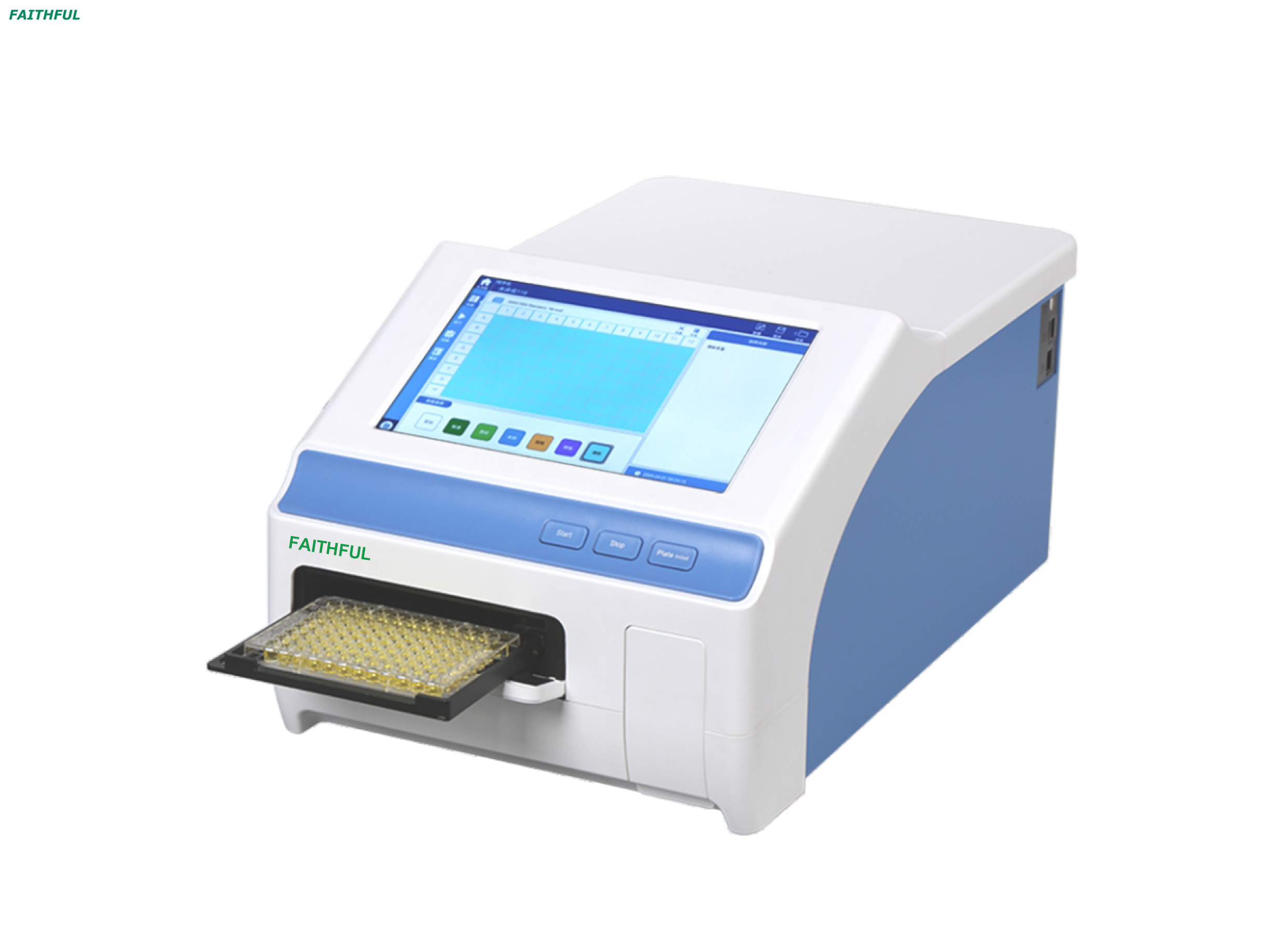

1. 10 inch touch screen, and offers stand-alone operation, it is easy to use
Intuitive, user-friendly internal software on a 10 inch touch screen for quick measurements. Easy and logical assays setup for demanding assays with the powerful PC software (ReaderIt-II), the PC software can offer to analysis, review, validate data. It is easy access to data via USB interface and WIFI.
2. Freely selectable wavelengths from 200 - 1000 nm for the demands of various assays
Wavelength selection in FlexA-200 is done by using an advanced monochromator system. Any wavelength between 200 to 1000nm can be selected at any time. Using the spectral scanning feature, the whole spectrum of a sample be scanned in 1nm increments to allow identification of the optimal measurement wavelength for a new assay.
3.Both microplate reading for any throughput requirements
It measures 96-and 384-well plates.
4.Flexibility and performance for various photometric applications
FlexA-200 microplate reader supports endpoint, kinetic and spectral scanning assays. It reads 96- and 384-well microplates with and without lids. A broad wavelength range with the UV area, pathlength correction as well as fast spectral scanning makes it an ideal tool for any photometric research application, including DNA, RNA and protein analysis.
Feature:
1. 10 inch touch screen, and offers stand-alone operation, it is easy to use
Intuitive, user-friendly internal software on a 10 inch touch screen for quick measurements. Easy and logical assays setup for demanding assays with the powerful PC software (ReaderIt-II), the PC software can offer to analysis, review, validate data. It is easy access to data via USB interface and WIFI.
2. Freely selectable wavelengths from 200 - 1000 nm for the demands of various assays
Wavelength selection in FlexA-200 is done by using an advanced monochromator system. Any wavelength between 200 to 1000nm can be selected at any time. Using the spectral scanning feature, the whole spectrum of a sample be scanned in 1nm increments to allow identification of the optimal measurement wavelength for a new assay.
3.Both microplate reading for any throughput requirements
It measures 96-and 384-well plates.
4.Flexibility and performance for various photometric applications
FlexA-200 microplate reader supports endpoint, kinetic and spectral scanning assays. It reads 96- and 384-well microplates with and without lids. A broad wavelength range with the UV area, pathlength correction as well as fast spectral scanning makes it an ideal tool for any photometric research application, including DNA, RNA and protein analysis.
Model | FlexA-200 |
Display | 10 inch touch screen |

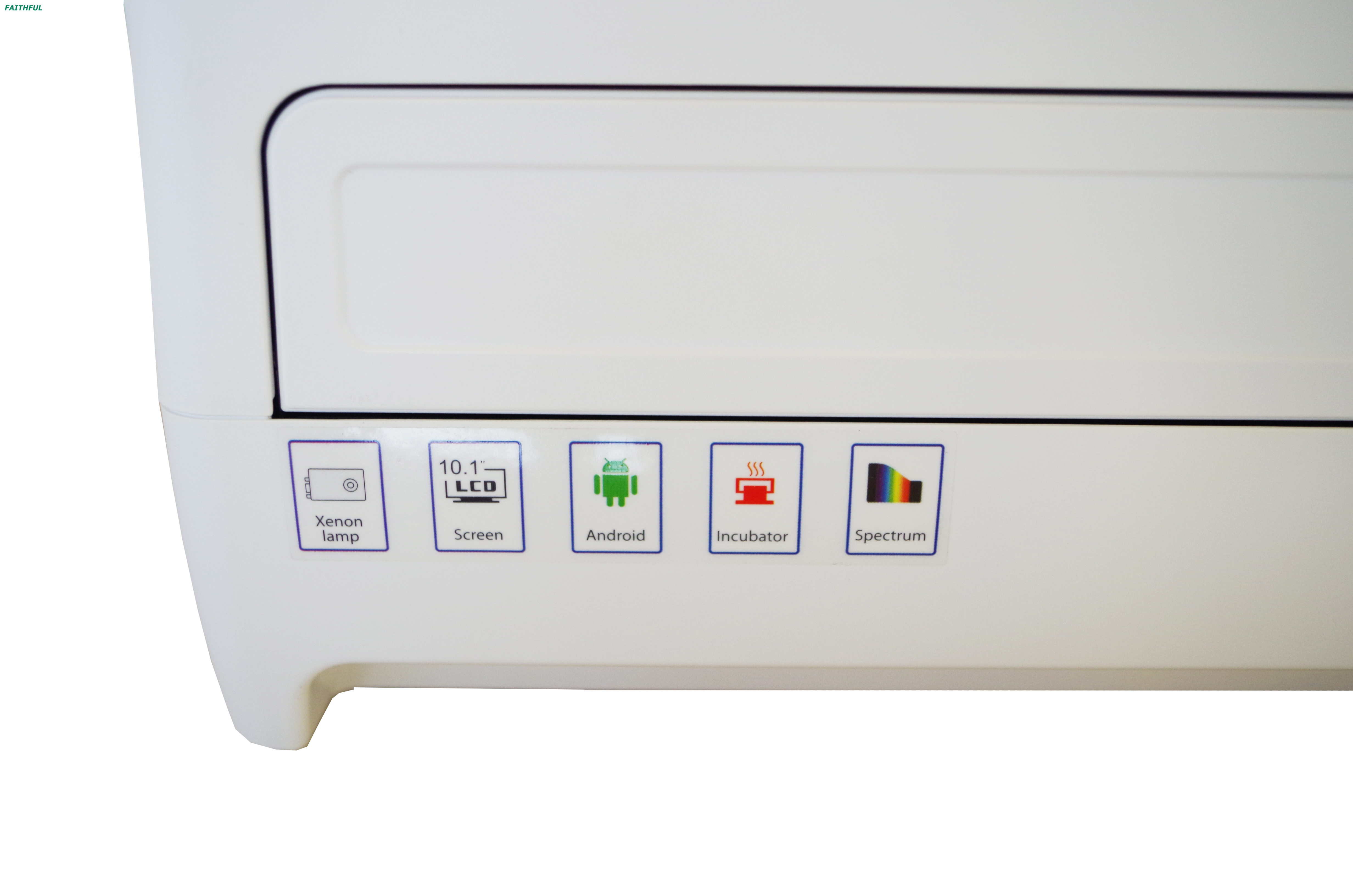

Light source | Xenon lamp |
Wavelength range | 200 - 1000 nm with 1 nm steps |
Wavelength accuracy | 2 nm |
Tepetition | 0.2 nm |
Wavelength selection | Monochromator |
Read-out range | 0 - 4.0 OD |
Half-bandwidth of filters | <2.5 |
Detector | Two silicon photoelectric detector, one for measurement, another for reference |
Linearity @450 nm | R²≥0.999,[0.0-3.0Abs] |
Accuracy @450 nm | ±(1.0 %+0.003Abs),(0~2.0 Abs]; ±2.0 %,(2.0~2.5Abs] |
Precision @450 nm | CV <0.5 % or SD<0.003 accurate model; CV <1.0 % fast mode |
Test speed | 8 seconds with 96-well plate (fast mode); 28 seconds with 96-well plate (accurate model) |
Plate shaking | Linear; three options for speed |
Incubator | RT + 4 ℃~45 ℃ |
UI | Integrated software or PC control software |
Analysis software | ReaderIt-II |
User interface | Touch screen, android system, 10 inch touch screen, external keyboard & mouse |
Storage | 16G, more than 20,000 test records |

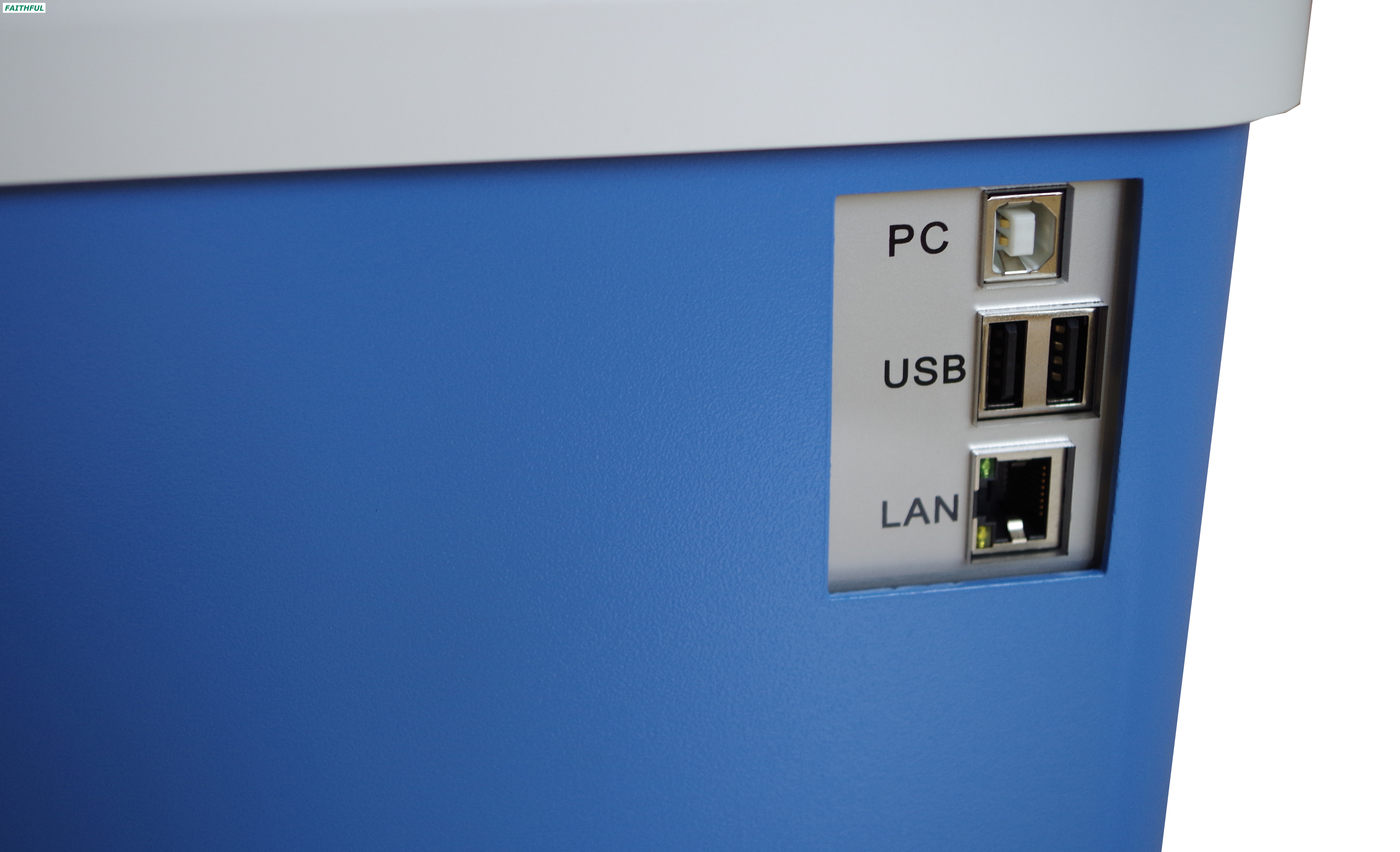

Port | 2 USB A type ports, 1 USB B type port, 1 Ethernet port |
Automated system | Temporarily incompatible with automated systems |
Power supply | DC24 V, 6.67 A |
Dimension (W×D×H) mm | 300×500×260 mm |
Weight | 15.5 kg |
Model | FlexA-200 |
Display | 10 inch touch screen |
Light source | Xenon lamp |
Wavelength range | 200 - 1000 nm with 1 nm steps |
Wavelength accuracy | 2 nm |
Tepetition | 0.2 nm |
Wavelength selection | Monochromator |
Read-out range | 0 - 4.0 OD |
Half-bandwidth of filters | <2.5 |
Detector | Two silicon photoelectric detector, one for measurement, another for reference |
Linearity @450 nm | R²≥0.999,[0.0-3.0Abs] |
Accuracy @450 nm | ±(1.0 %+0.003Abs),(0~2.0 Abs]; ±2.0 %,(2.0~2.5Abs] |
Precision @450 nm | CV <0.5 % or SD<0.003 accurate model; CV <1.0 % fast mode |
Test speed | 8 seconds with 96-well plate (fast mode); 28 seconds with 96-well plate (accurate model) |
Plate shaking | Linear; three options for speed |
Incubator | RT + 4 ℃~45 ℃ |
UI | Integrated software or PC control software |
Analysis software | ReaderIt-II |
User interface | Touch screen, android system, 10 inch touch screen, external keyboard & mouse |
Storage | 16G, more than 20,000 test records |
Port | 2 USB A type ports, 1 USB B type port, 1 Ethernet port |
Automated system | Temporarily incompatible with automated systems |
Power supply | DC24 V, 6.67 A |
Dimension (W×D×H) mm | 300×500×260 mm |
Weight | 15.5 kg |
