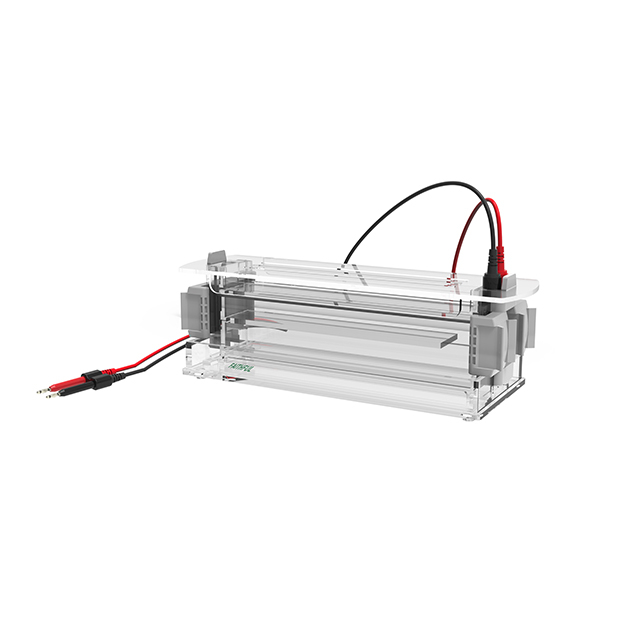

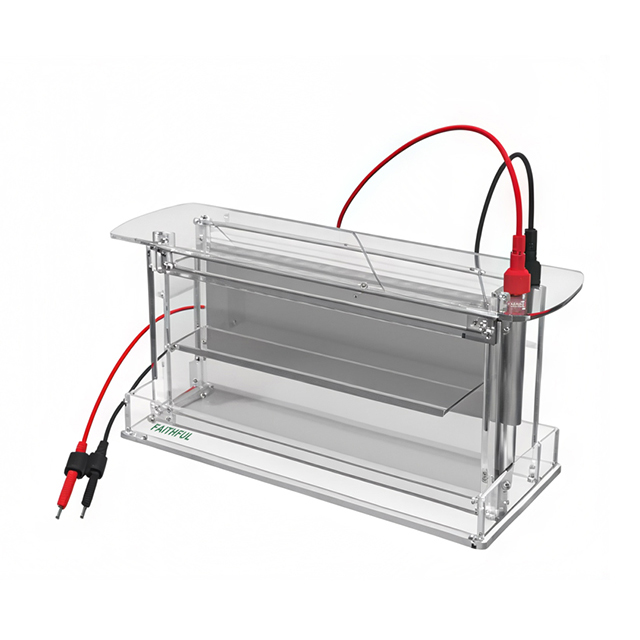

High-throughput Vertical Electrophoresis Tank

This series of products is specially designed for molecular marker purity analysis of large quantities of samples at the DNA level using methods such as SSR or RAPD. It is particularly suitable for genetics, breeding, seed purity testing and authenticity identification.
Availability:
Quantity:
  • FL-Scz04A, FL-Scz04A+, FL-Scz04B1 , FL-Scz04C

  • FAITHFUL

Features

1.High sample throughput: A dual-slab electrophoresis cell can load up to 200 samples. When paired with the FL-600D high-current power supply, one power supply can drive four electrophoresis cells simultaneously, meeting high-throughput testing needs and significantly reducing instrument procurement costs.

2. Three sets of high-purity platinum electrodes deliver a stable electric field.

3.Compatible with circulating cooling water to maintain a constant electrophoresis temperature, enabling electrophoresis at higher voltages.


Technical Parameters

Item

Specification

Gel Area

FL-Scz04A: 30 × 8.5 cm; FL-Scz04A+: 30 × 10.5 cm; FL-Scz04B1: 30 × 13 cm; FL-SCZ04C: 30 × 19 cm

Gel Thickness

1mm

Sample Throughput

Both 102-well and 68-well plates support row/column sampling

Compatible Power Supply

FL-600C: Can run two electrophoresis cells simultaneously; FL-600D: Can run four electrophoresis cells simultaneously


Standard Configuration

Name

Unit

Quantity

Electrophoresis Cell Lid

PC

1

Electrophoresis Cell Body

UNIT

1

Gel Glass Notched Plate

PC

2

Gel Glass Flat Plate

PC

2

1.0mm 102-tooth Comb

PC

2

1.0mm 68-tooth Comb

PC

2

Circulating Water Tube

PC

2

Binder Clip

PC

8

Power Cord

SET

1

Bubble Hook

PC

2
