Laminar Flow Cabinet (Desktop Type)
Home » Product » Lab Equipment » Laminar Flow Cabinet » Laminar Flow Cabinet (Desktop Type) » Laminar Flow Cabinet (Desktop Type)

Product Classification

Contact Us

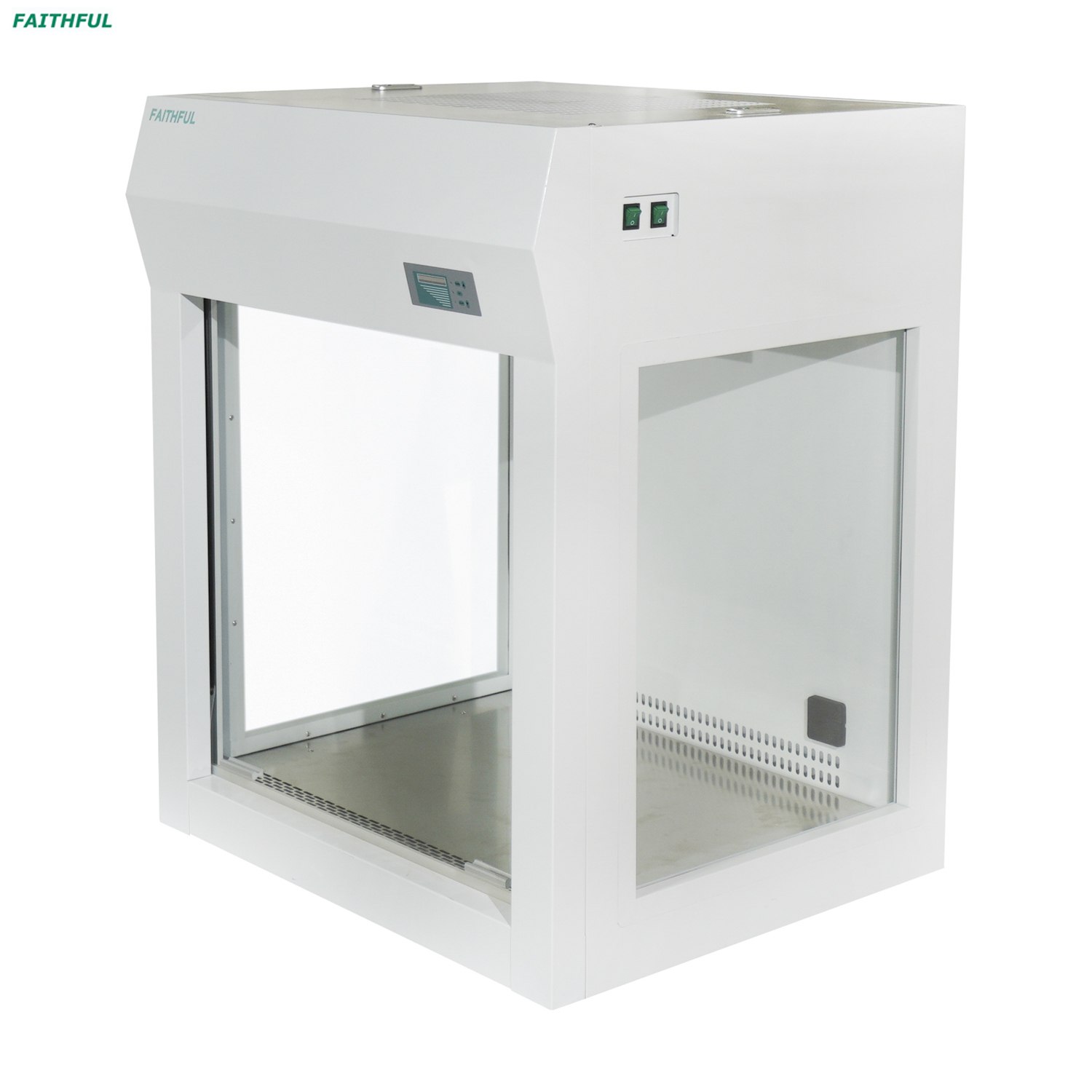

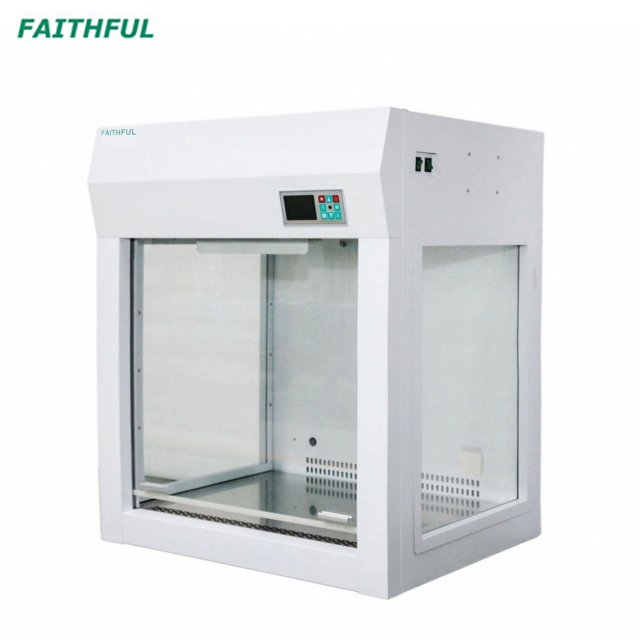

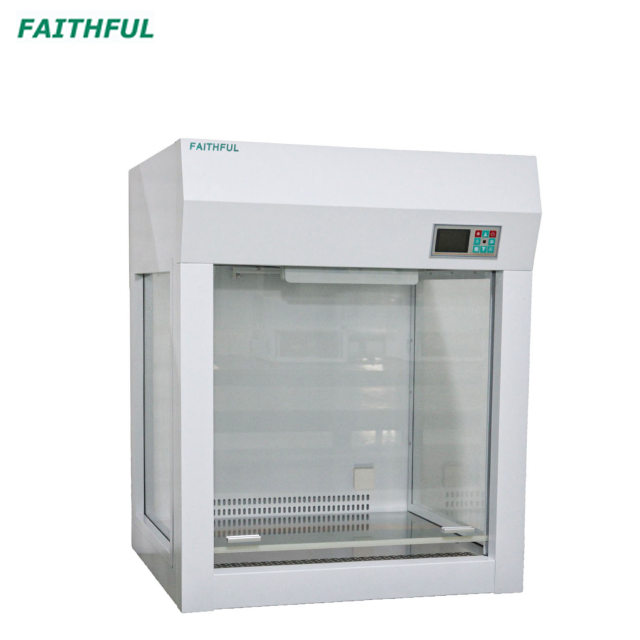

Laminar Flow Cabinet (Desktop Type)

Table type clean equipment.
Availability:
Quantity:
  • CJ-1DZ
  • FAITHFUL

1.HEPA filter with efficiency: 99.995% at 0.3um.

2. Microprocessor control system, LED Display,Air speed adjustable,HEPA filter and sterilization lamp replacement reminder function

3.Desktop type, which can place higher equipment inside. Standard with universal power socket, optional internal and external USB  port.

4. Pre- filter is polyester fiber, washable and anti-oxidation.

5. Working plate can load up to 50KG, UV lamp will be turn off automatically when open the glass window to protect users.

ModelCJ-1DZ
Applicable Stationone person one side
Airflow DirectionVertical
FunctionCleanlinessClass 100(ISO Class 5)
Collection Efficiency0.3um particle ≥9.995%
Colony count≤0.5/vessel ( petri dish isφ90mm )
Wind Speedinitial: 0.5;final: 0.2 (m/s )
Wind Speed Range0.2-0.5 (m/s)
Noise Level≤62db
Vibration Semi-peak Value≤3um
Illuminat Lntensity(Lx)≥500LX( Activity Center )
Work Surface50kg
CompositionInner ChamberSUS304 Stainless steel plate
Outer ShellCold rolling steel electrostatic spraying exterior
Operation DoorTempered Glass
HEPA Filter ( mm )780*533*50 one piece
Pre- Filter ( mm )532*446*5 one piece
Fluorescent Lamp8W*1
UV Lamp8W*1
Top Fan160W one piece
Rated power180W
ControllerDisplayLED
Wind Speed ControlIntelligent multi-level adjustable
Additional FunctionBuit in 1 multi-purpose socket,high-efficiency filter,sterilization lamp replacement prompt,foot level adjustment, open the door and cut off UV function
SpecificationInner Size ( W*L*H)788*613*700
Exterior Size (W*L*H)852*714*1082
Packing Size
( W*L*H )mm
972*834*1292
Max power of
universal socket
800W
Current Rating
( 50/60Hz )
AC220V/0.8A
NW/GW kg90/120
OptionalUSB internal and external data connection socket, color LCD controller,Special configuration for 3D printer
