Product Classification

Mechanical Pipette

Features for TopPette

Lightweight, ergonomic, low force design
Digital display clearly reads volume setting
The pipettes cover volume range of 0.1μl to 10ml
Easy to calibrate and maintain with tool supplied
Design helps avoid repetitive strain injuries
-Calibrated in accordance with ISO8655. Each pipette supplied with individual test certificate
The low part is available for autoclaving

Features for multi-channel TopPette

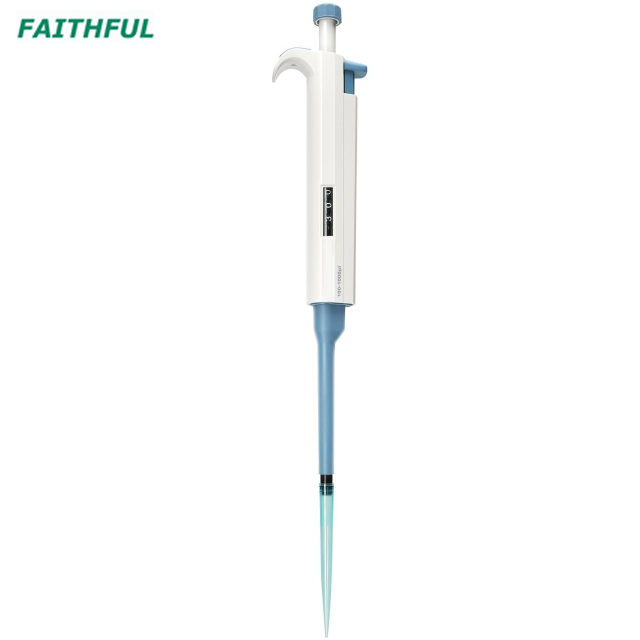

Single-channel Adjustable Volume
Parameters/Model	Volume Range	Increment	Test Volume（μl）	Accuracy error		Precision error
TopPette	Volume Range	Increment	Test Volume（μl）	%	μl	%	μl
	0.1-2.5μl	0.05μl	2.5	2.50%	0.0625	2.00%	0.05
			1.25	3.00%	0.0375	3.00%	0.0375
			0.25	12.00%	0.03	6.00%	0.015
	0.5-10μl	0.1μl	10	1.00%	0.1	0.80%	0.08
			5	1.50%	0.075	1.50%	0.075
			1	2.50%	0.025	1.50%	0.015
	2-20μl	0.5μl	20	0.90%	0.18	0.40%	0.08
			10	1.20%	0.12	1.00%	0.1
			2	3.00%	0.06	2.00%	0.04
	5-50μl	0.5μl	50	0.60%	0.3	0.30%	0.15
			25	0.90%	0.225	0.60%	0.15
			5	2.00%	0.1	2.00%	0.1
	10-100μl	1μl	100	0.80%	0.8	0.15%	0.15
			50	1.00%	0.5	0.40%	0.2
			10	3.00%	0.3	1.50%	0.15
	20-200μl	1μl	200	0.60%	1.2	0.15%	0.3
			100	0.80%	0.8	0.30%	0.3
			20	3.00%	0.6	1.00%	0.2
	50-200μl	1μl	200	0.60%	1.2	0.15%	0.3
			100	0.80%	0.8	0.30%	0.3
			50	1.00%	0.5	0.40%	0.2
	100-1000μl	5μl	1000	0.60%	6	0.20%	2
			500	0.70%	3.5	0.25%	1.25
			100	2.00%	2	0.70%	0.7
	200-1000μl	5μl	1000	0.60%	6	0.20%	2
			500	0.70%	3.5	0.25%	1.25
			200	0.90%	1.8	0.30%	0.6
	1000-5000μl	50μl	5000	0.50%	25	0.15%	7.5
			2500	0.60%	15	0.30%	7.5
			1000	0.70%	7	0.30%	3
	2-10ml	0.1ml	10ml	0.60%	60	0.20%	20
			5ml	1.20%	60	0.30%	15
			2ml	3.00%	60	0.60%	12

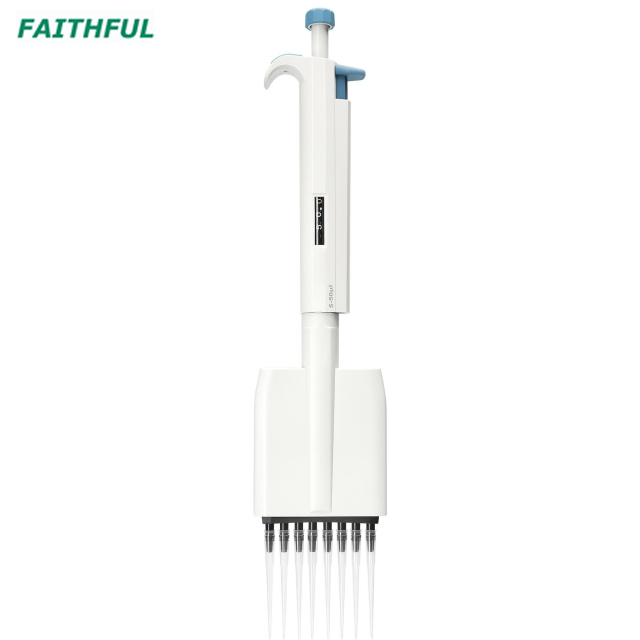

Eight-channel Adjustable Volume
Parameters/Model	Volume Range	Increment	Test Volume（μl）	Accuracy error		Precision error
TopPette Multi- channel	Volume Range	Increment	Test Volume（μl）	%	μl	%	μl
	0.5-10μl	0.1μl	10	1.50%	0.15	1.50%	0.15
			5	2.50%	0.125	2.50%	0.125
			1	4.00%	0.04	4.00%	0.04
	5-50μl	0.5μl	50	1.00%	0.5	0.50%	0.25
			25	1.50%	0.375	1.00%	0.25
			5	3.00%	0.15	2.00%	0.1
	50-300μl	5μl	300	0.70%	2.1	0.25%	0.75
			150	1.00%	1.5	0.50%	0.75
			50	1.50%	0.75	0.80%	0.4

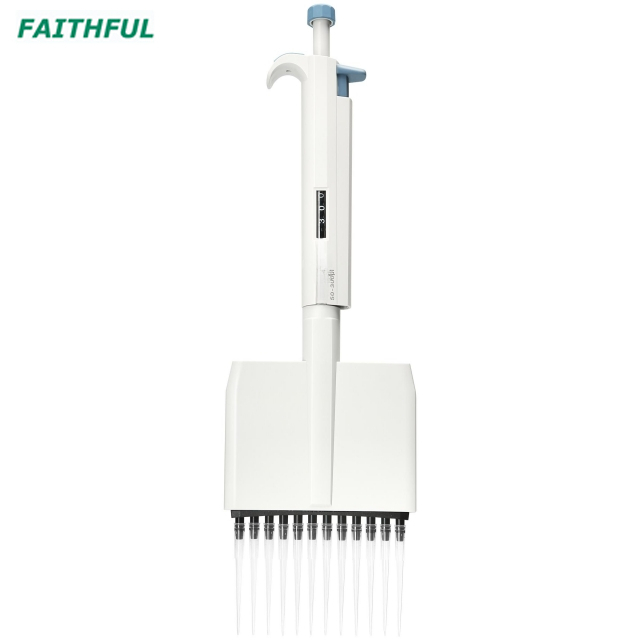

Twelve-channel Adjustable Volume
Parameters/Model	Volume Range	Increment	Test Volume（μl）	Accuracy error		Precision error
TopPette Multi- channel	Volume Range	Increment	Test Volume（μl）	%	μl	%	μl
	0.5-10μl	0.1μl	10	1.50%	0.15	1.50%	0.15
			5	2.50%	0.125	2.50%	0.125
			1	4.00%	0.04	4.00%	0.04
	5-50μl	0.5μl	50	1.00%	0.5	0.50%	0.25
			25	1.50%	0.375	1.00%	0.25
			5	3.00%	0.15	2.00%	0.1
	50-300μl	5μl	300	0.70%	2.1	0.25%	0.75
			150	1.00%	1.5	0.50%	0.75
			50	1.50%	0.75	0.80%	0.4
