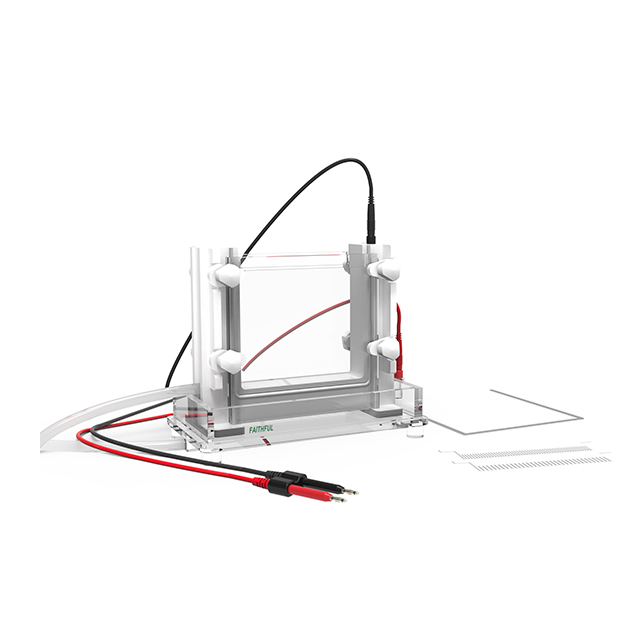

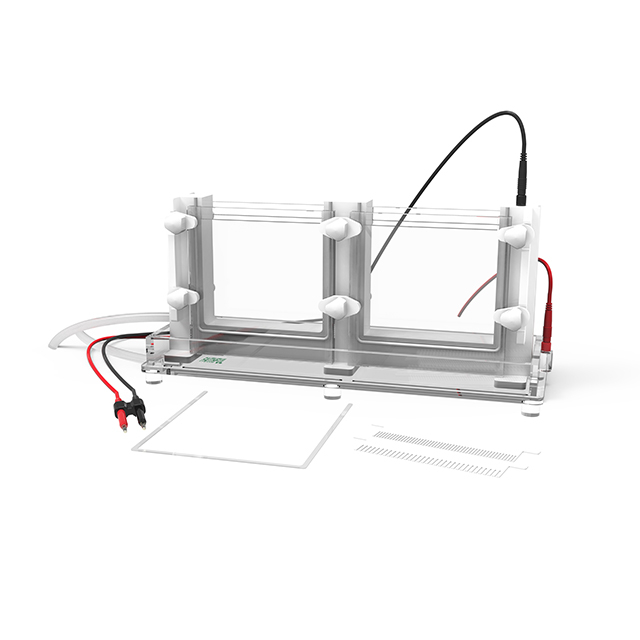

Medium-sized Vertical Electrophoresis Cell FL-Scz02 FL-Scz03

Availability:
Quantity:
  • FL-Scz02 ,FL-Scz03

  • FAITHFUL

Features

1. Suitable for various protein gel electrophoresis and SSR molecular marker analysis.

2. Capable of running 2-4 medium-sized gels simultaneously to meet high-throughput electrophoresis requirements.

3. Thickened gel glass plates for enhanced sturdiness and durability.

4. Integrated design of the notched plate and edge strips.

5. Special gel sealing mold to ensure no gel leakage.

6. Buffer solution outlets on both upper and lower tanks for easy removal of residual liquid.

7. No additional electric field interference from the sides, resulting in straight and clear bands.

8. 99.99% high-purity platinum electrodes for superior electrical conductivity.




Technical Parameters

1. Glass area: 18×18cm

2. Gel area: 15×15cm

3. Gel thickness: 1.0 mm

4. Comb teeth number: 20, 34, 50 (optional, compatible with multi-channel pipette sampling)

5. Note: The standard configuration of FL-Scz03, excluding the electrophoresis cell body, drain tube and power cord, is twice that of FL-Scz02.


Standard Configuration

NameUnitQuantity
Electrophoresis Cell BodyPC1
Gel Glass Notched PlatePC2
Gel Glass Flat PlatePC2
1.0mm 20-tooth CombPC2
1.0mm 34-tooth CombPC2
Drain TubePC2
Power CordSET1
Gel Sealing FramePC2
Binder ClipPC8
