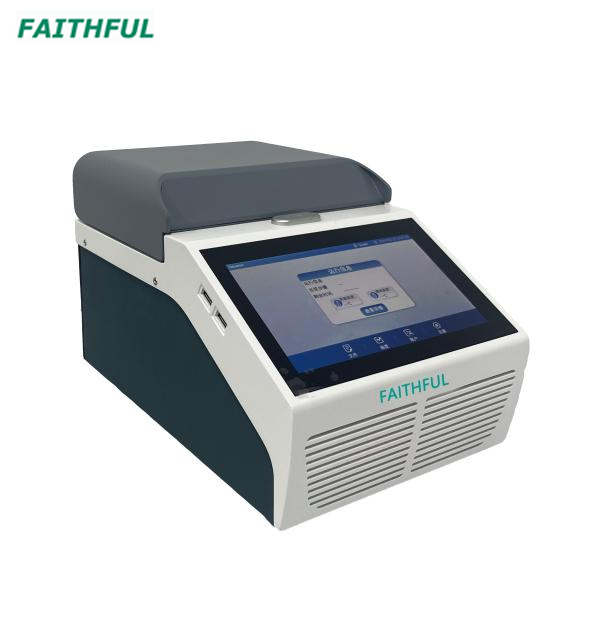

MNA-96 Thermal Cycler Gradient

Availability:
Quantity:
  • MNA-96

  • FAITHFUL

Feature:

1. 7-inch fully-laminated touch screen and simple user interface.

2. Constructed with a metal alloy housing.

3. Equipped with an adaptive heat cover for compatibility with a wider range of consumables.

4. Built-in multiple standard template programs.

5. Offers power-off protection and automatic low-temperature preservation functions.

6. The patented module design provides excellent temperature uniformity without additional heating assistance.

7. The instrument adopts the forward and back air duct design, which not only ensures the hardware stability, but also ensures the maximum heat dissipation efficiency.


Model

MNA-96

Sample Capacity

0.2ml PCR tube/8-tube strip/96-well plate

Reaction Volume

5-100ul

Max. Heating Rate

5℃/s

Max. Cooling Rate

4.5℃/s

Ramping Rate Adjustable

0.1-5℃

Accuracy

±0.1℃

Uniformity

±0.2℃

Temp. Range

0-105℃

Temperature Display Resolution

±0.1℃

Hot lid Temperature

30-115℃

Gradient Temp. Range

30-105℃

Gradient Adjustment

Horizontal :1-30℃

Temp.Increment /Decrement

0.1-10℃

Time Increment /Decrement

1S-600S

Max. No. of Step

100

Max. No. of Cycle

100

Number of Programs

20000

Hold at 4

Infinite

TM Calculator

YES

Power Fail Safeguard

YES

Pause Function

YES

Language

Chinese/English

Communication Interface

USB*2

Power

100-240VAC ,50/60Hz , 800 W

Dimension

293×190×183mm

Weight

5.5kg
