FL-ZY04
FAITHFUL
Features
1. Enables fast, high-quality blotting of small protein gels.
2. Can simultaneously blot four gels (8.3×7.3 cm) in one run.
3. The tank is injection-molded in one piece from high-transparency polycarbonate, ensuring leakproofness and impact resistance.
4. The anode and cathode are spaced 5.5 cm apart, generating a strong electric field for efficient protein blotting.
5. The 99.99% high-purity platinum electrodes offer superior electrical conductivity and excellent resistance to corrosion and aging.
6. Built-in blue crystal ice box rapidly absorbs heat generated during electrophoresis.
7. Dedicated openable sandwich clamp, easy to operate.
8. Equipped with a dedicated bubble roller for convenient bubble removal.
9. Effective blotting area: 110×90 mm.
10. Overall dimensions: 16×12×18 cm.
11. Buffer volume: 1100 mL.
Cooling System | Built-in crystal ice pack active heat dissipation, prevents band distortion from excessive chamber temperature |
Open-face sandwich type | |
Effective Transfer Area | 110*90mm |
Buffer Volume | 1100mL |

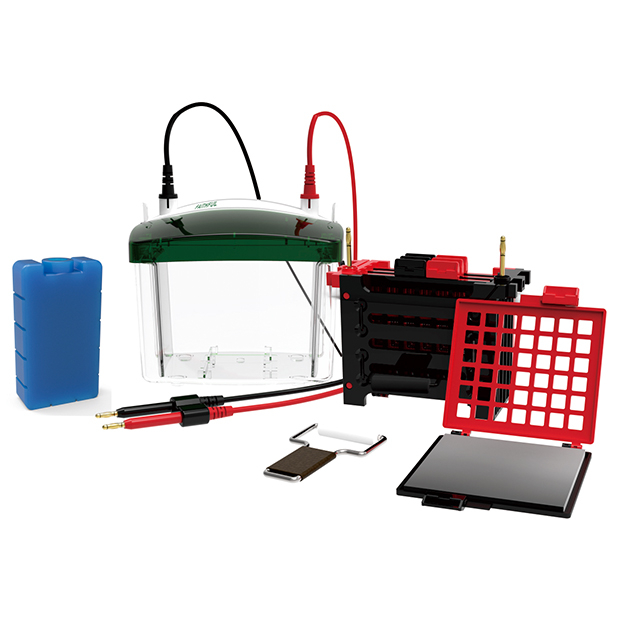

Standard Configuration
Name | Unit | Quantity |
Electrophoresis Tank Lid (with cables) | SET | 1 |
Electrophoresis tank lower casing | PC | 1 |
Transfer core assembly | SET | 1 |
Sandwich blotting clamp | PAIR | 4 |
Blotting pad | PC | 8 |
Blue Ice Box | PC | 1 |
Bubble Roller | PC | 1 |
Filter Paper | PC | 20 |
