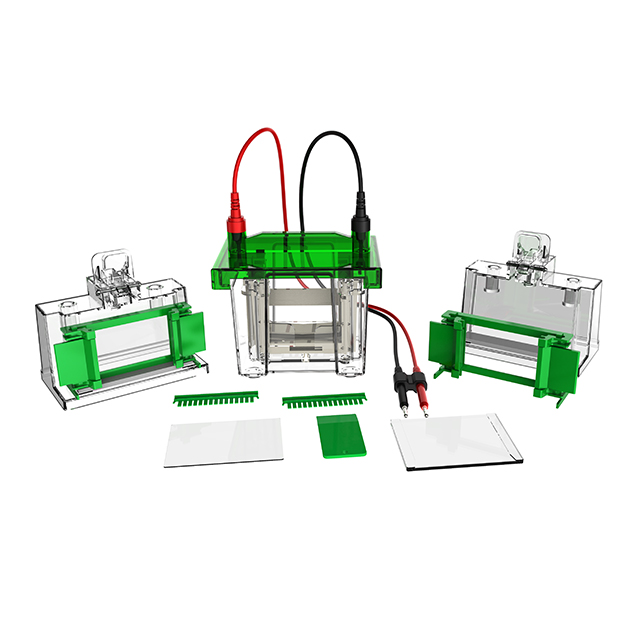

FL-Mini01
FAITHFUL
Features
1. Suitable for low-volume protein samples
2. Integrated glass plates and spacers
3. Runs two 8.3 × 7.3 cm gels simultaneously
4. Separated gel casting unit with silicone sealing gaskets
5. Power cut-off upon lid opening
6. Lid stop structure to ensure correct connection of positive and negative electrodes
7. 99.99% high-purity platinum electrodes
Technical Parameters
Glass plates | Thick (101×82mm), Thin (101×73mm) |
Gel size | 83×73mm |
Gel thickness | 0.75/1.0/1.5mm (optional) |
Sample lanes | 10, 15, 12 (optional) |
Dimensions | 16*11.5*15cm |
Buffer | Inner 130mL, Outer 750mL |
Standard Configuration
Name | Unit | Quantity |
Electrophoresis Tank Main Body | SET | 1 |
Electrophoresis Tank Inner Core | SET | 1 |
1.0mm Thick Gel Glass Plate | PC | 5 |
Thin Gel Glass Plate | PC | 5 |
1.0mm 10-Tooth Comb | PC | 2 |
1.0mm 15-Tooth Comb | PC | 2 |
Transparent Gel Casting Base | PC | 2 |
Gel Casting Clamp | PC | 2 |
Gel Spatula | PC | 1 |
Baffle | PC | 1 |
