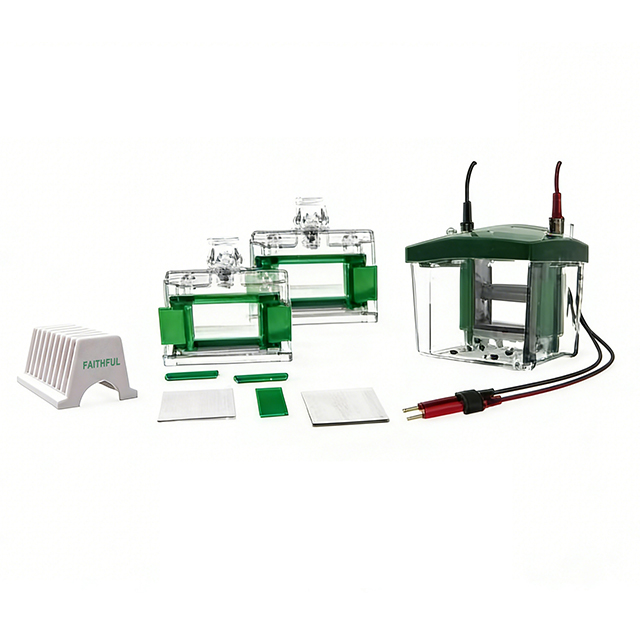

Protein Electrophoresis & Transblot System FL-Mini02

Home » Product » Analytical Equipment » Electrophoresis » Vertical Electrophoresis » Protein Electrophoresis & Transblot System FL-Mini02

Product Classification

Features

1. For vertical electrophoresis of small-volume protein samples

2. Integrated glass plates & spacers: no gel leakage

3. Runs two 8.3×7.3cm gels at once

4. Split-type gel casting base (connected-type optional): flexible & reliable operation

5. Silicone gel-sealing pad: anti-aging, durable

6. Lid-open power cut-off: safe operation

7. Lid positioning: correct electrode polarity

8. 99.99% Pt electrodes: better conductivity, corrosion/aging resistant

9. Accessories compatible with imported devices

Technical Parameters

1. Glass Plate Dimensions: Long (thick) plate 101×82 mm; Short (thin) plate 101×73 mm

2. Gel size: 83×73mm

3. Gel thickness: 0.75 mm, 1.0 mm, 1.5 mm (optional)

4. Sample lanes: 10,15,12 (optional)

5. Dimensions: 16×12×18cm

6. Buffer: 700ml

Standard Configuration

Name	Unit	Quantity
Electrophoresis Tank Lid (with cables)	SET	1
Electrophoresis Tank Lower Casing	PC	1
Electrode Core	SET	1
1.0mm Thick Gel Glass Plate	PC	5
Thin Gel Glass Plate	PC	5
1.0mm 10-Tooth Comb	PC	2
1.0mm 15-Tooth Comb	PC	2
Gel Casting Stand	PC	2
Gel Clamp Frame	PC	2
Single Gel Baffle	PC	1
Gel Spatula	PC	1
Glass Drying Rack	PC	1
