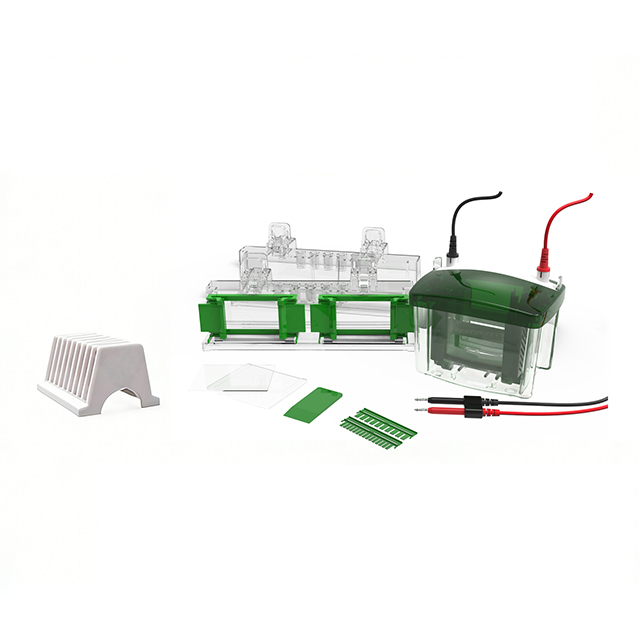

Protein Electrophoresis & Transblot System FL-Mini04

Availability:
Quantity:
  • FL-Mini04

  • FAITHFUL

Features

1. Permanently fixed sealing gaskets, eliminates gel leakage atthe source

2. Cam-action quick-lock frame, no repeated screw tightening

3. Thick shatter-resistant glass plates, cuts consumable waste

4. 99.99% high-purity platinum electrodes, corrosion-resistant,long service life

5. Stand options: parallel integrated stand (standard) / split independent stand

6. Compatible gel size: 8.3*7.3 cm


Technical Parameters

Number of Gels

1-4

Glass Plate Dimensions

Long (thick) plate 101×82 mm; Short (thin) plate 101×73 mm

Gel Dimensions

Hand-cast gel 83*73 mm; Precast gel 86*68 mm

Gel Thickness

0.75, 1.0, 1.5 mm (optional)

Optional Sample Combs

10, 12, 15 teeth

Dimensions

16*12*18cm

Buffer volume

700 mL for 1–2 gels; 1000 mL for 4 gels


Standard Configuration


Name

Unit

Quantity

Upper lid of electrophoresis tank (with wires)

SET

1

Lower casing of electrophoresis tank

PC

1

Main electrode core

PC

1

Auxiliary electrode core

PC

1

1.0mm thick glass plate for gel casting

PC

5

Thin glass plate for gel casting

PC

5

1.0mm 10-tooth sample comb

PC

5

Gel casting base

PC

2

Gel clamping frame

PC

4

Single gel baffle

PC

1

Gel spatula

PC

1

Glass drying rack

PC

1
