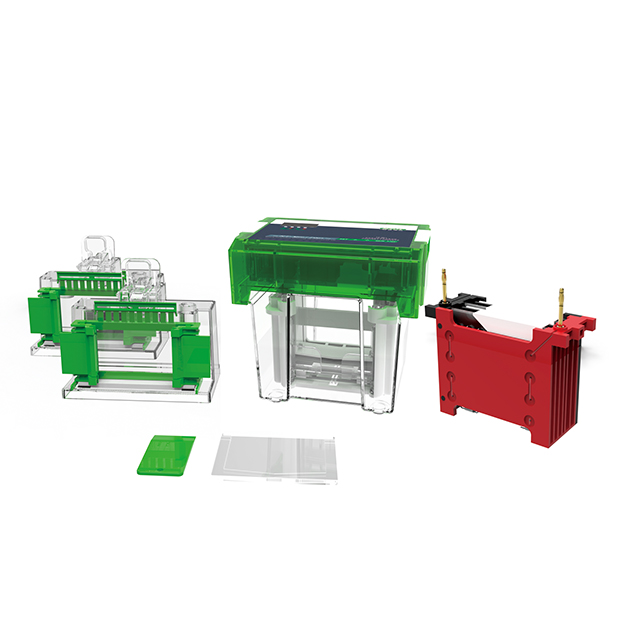

Protein & Transfer Electrophoresis System

Availability:
Quantity:
Inquire Add to Basket

  • FL-Mini Plus

  • FAITHFUL

Features

1. Designed for Western Blot electrophoresis experiments

2. Integrated power supply for both electrophoresis and transfer

3. Pre-set standard parameters for one-click operation

4. Compatible with FAITHFUL fast gels and fast transfer buffer

5. Delivers rapid electrophoresis and membrane transfer

6. Electrophoresis completed in 30 minutes

7. Membrane transfer completed in 30 minutes


Technical Parameters

  • Electrophoresis gels: 1–2 gels

  • Gel thickness: 0.75 mm, 1 mm, 1.5 mm (optional)

  • Optional comb teeth: 10 or 15 teeth

  • Glass plate dimensions: Short (10.1×7.3cm), Long (10.1×8.2cm)

  • Transfer area: 110×90mm

  • Timer: 0–999 min



Standard Configuration


NameUnitQuantity
Electrophoresis Tank Lid (Integrated Power Supply)SET1
Electrophoresis Tank Lower CasingPC1
Electrode CoreSET1
1.0mm Thick Gel Glass PlatePC5
Thin Gel Glass PlatePC5
1.0mm 10-Tooth CombPC2
1.0mm 15-Tooth CombPC2
Gel Casting StandPC2
Gel Clamp FramePC2
Single Gel BafflePC1
Glue RackPC1
Glass HolderPC1
Transfer Electrode CoreSET1
Sandwich Transfer ClampSET2
White Ice BoxPC1
Blue Ice BoxPC1
Bubble RollerPC1
Power CordSET1
Fast Gel Casting Trial KitSET1
Fast Transfer Buffer Trial KitSET1


10. FL-Mini Plus.pdf
