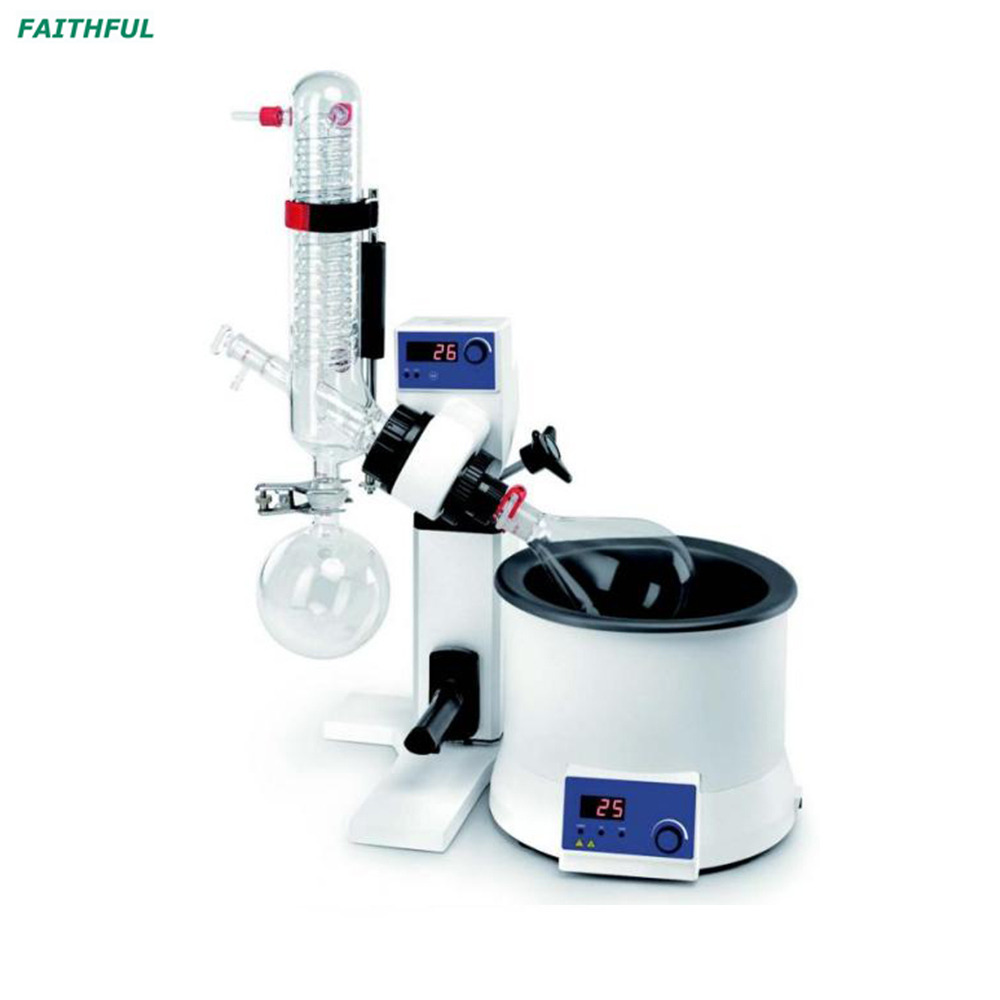

RE100-S
Faithful
1. 5L heating bath with a wide temperature range (room temp.to 180°C).
2. Manual lift combined with auxiliary lift for precise positioning of the glassware
3. PID control.
4. Overheating protection temperature at 220°C
5. Boil-dry protection.
6.Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process
7. Condenser (cooling surface 1200/1700cm2 for selection).
8. Ejection mechanism ensures easy exchange of evaporating flask
9. Adjustable immersion angle
10. Double spring sealing ring which is made of PTFE provides an excellent sealing performance
11. Compatible with the entire range of RE100-Pro glassware
12. High temperature warning when above 50°C
1. 5L heating bath with a wide temperature range (room temp.to 180°C).
2. Manual lift combined with auxiliary lift for precise positioning of the glassware
3. PID control.
4. Overheating protection temperature at 220°C
5. Boil-dry protection.
6.Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process
7. Condenser (cooling surface 1200/1700cm2 for selection).
8. Ejection mechanism ensures easy exchange of evaporating flask
9. Adjustable immersion angle
10. Double spring sealing ring which is made of PTFE provides an excellent sealing performance
11. Compatible with the entire range of RE100-Pro glassware
12. High temperature warning when above 50°C
Model | RE100-S |
Evaporating Flask Volume | 50-3000mL |
Motor Type | Brushless DC motor |
Speed Range | 20-200rpm |
Display | LED(speed, temperature, time) |
Direction of Rotation | Clockwise and counterclockwise |
Heating Temperature Range | Room temp. to 180℃ |
Control Accuracy | water: ±1℃ oil: ±3℃ |
Evaporation capacity | Max.1.56L/h(H2O) |
Heating Power | 1200W |
Lift stroke | Manual 110mm+auxiliary 100mm |
Interval Time Setting Range | 1-999s |
Dimension[D×W×H] | Main Unit: 440x320x450mm Heating Bath: 300x300x240mm |
Weight | Main Unit:7kg Heating Bath:3kg |
Permissible Ambient Temperature | 5-40℃ |
Permissible Relative Humidity | 80%RH |
Protection Class | IP20 |
USB Interface | Yes |
Voltage/Frequency | 100-120/200-240V,50/60HZ |
Power | 1245W |
Evaporating Flask
Cat.No. | Glassware Type | Size |
18300116 | 50ml | NS 29/32 |
18300117 | 100ml | NS 29/32 |
18300118 | 250ml | NS 29/32 |
18300119 | 500ml | NS 29/32 |
18300120 | 1000ml | NS 29/32 |
18300121 | 2000ml | NS 29/32 |
18300122 | 3000ml | NS 29/32 |
18300655 | 50ml | NS 24/40 |
18300201 | 100ml | NS 24/40 |
18300202 | 250ml | NS 24/40 |
18300203 | 500ml | NS 24/40 |
18300204 | 1000ml | NS 24/40 |
18300205 | 2000ml | NS 24/40 |
18900204 | 3000ml | NS 24/40 |
18900563 | 20L | RE 200-Pro |
Distilling spider with 5 flasks(without flask)
Cat.No. | Glassware Type | Size |
18900194 | / | NS 29/32 ; NS 24/29 |
18900177 | / | NS 29/42 ; NS 24/40 |
Connector
Cat.No. | Glassware Type | Size |
18300094 | / | NS 29/32 ; NS 24/29 |
18300095 | / | NS 29/32 ; NS 19/26 |
18300096 | / | NS 29/32 ; NS 14/23 |
18300199 | / | NS 24/40 ; NS 19/22 |
18300200 | / | NS 24/40 ; NS 14/20 |
18300193 | / | NS 24/40 ; NS 29/42 |
Model | RE100-S |
Evaporating Flask Volume | 50-3000mL |
Motor Type | Brushless DC motor |
Speed Range | 20-200rpm |
Display | LED(speed, temperature, time) |
Direction of Rotation | Clockwise and counterclockwise |
Heating Temperature Range | Room temp. to 180℃ |
Control Accuracy | water: ±1℃ oil: ±3℃ |
Evaporation capacity | Max.1.56L/h(H2O) |
Heating Power | 1200W |
Lift stroke | Manual 110mm+auxiliary 100mm |
Interval Time Setting Range | 1-999s |
Dimension[D×W×H] | Main Unit: 440x320x450mm Heating Bath: 300x300x240mm |
Weight | Main Unit:7kg Heating Bath:3kg |
Permissible Ambient Temperature | 5-40℃ |
Permissible Relative Humidity | 80%RH |
Protection Class | IP20 |
USB Interface | Yes |
Voltage/Frequency | 100-120/200-240V,50/60HZ |
Power | 1245W |
Evaporating Flask
Cat.No. | Glassware Type | Size |
18300116 | 50ml | NS 29/32 |
18300117 | 100ml | NS 29/32 |
18300118 | 250ml | NS 29/32 |
18300119 | 500ml | NS 29/32 |
18300120 | 1000ml | NS 29/32 |
18300121 | 2000ml | NS 29/32 |
18300122 | 3000ml | NS 29/32 |
18300655 | 50ml | NS 24/40 |
18300201 | 100ml | NS 24/40 |
18300202 | 250ml | NS 24/40 |
18300203 | 500ml | NS 24/40 |
18300204 | 1000ml | NS 24/40 |
18300205 | 2000ml | NS 24/40 |
18900204 | 3000ml | NS 24/40 |
18900563 | 20L | RE 200-Pro |
Distilling spider with 5 flasks(without flask)
Cat.No. | Glassware Type | Size |
18900194 | / | NS 29/32 ; NS 24/29 |
18900177 | / | NS 29/42 ; NS 24/40 |
Connector
Cat.No. | Glassware Type | Size |
18300094 | / | NS 29/32 ; NS 24/29 |
18300095 | / | NS 29/32 ; NS 19/26 |
18300096 | / | NS 29/32 ; NS 14/23 |
18300199 | / | NS 24/40 ; NS 19/22 |
18300200 | / | NS 24/40 ; NS 14/20 |
18300193 | / | NS 24/40 ; NS 29/42 |
