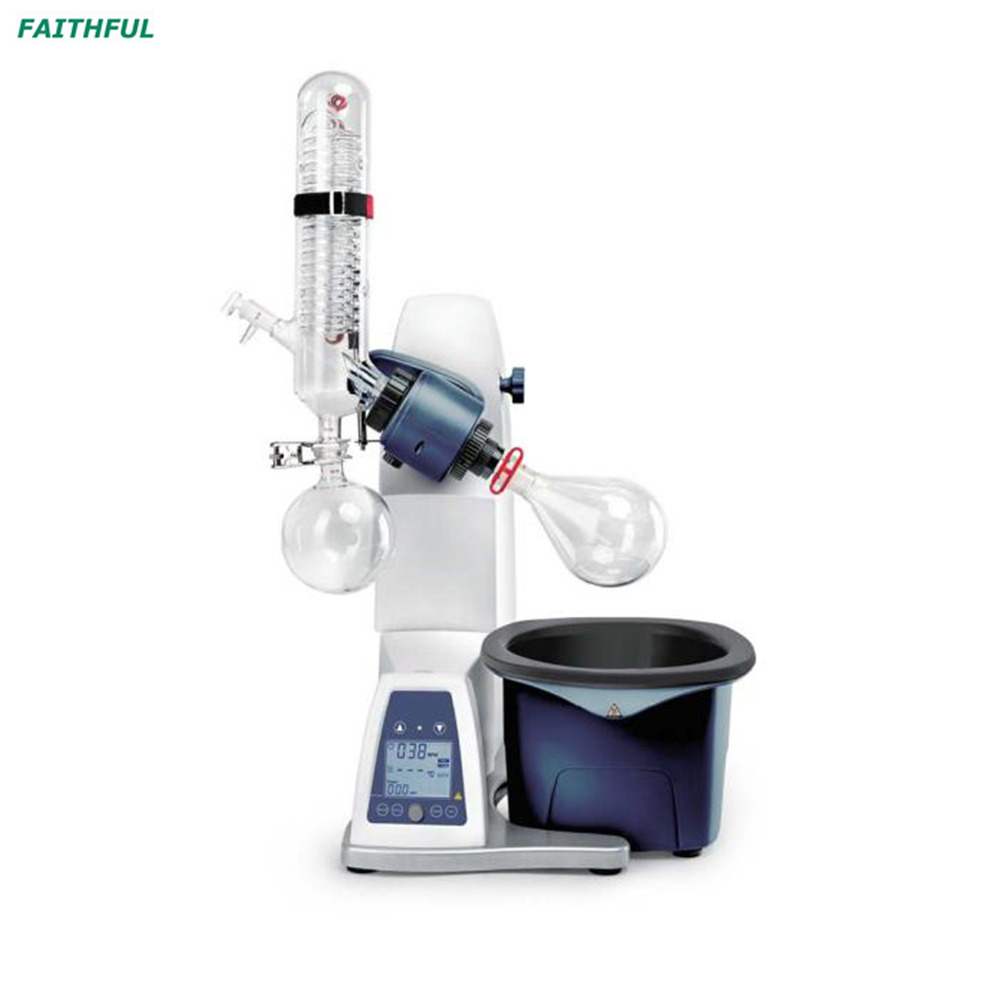

RE100-Pro Digital Rotary Evaporator

Availability:
Quantity:
  • RE100-Pro

  • Faithful

1. Digital LCD display of both rotation speed and heating temperature allows for optimal control of all distillation processes.

2. Automatic motor lift releases the evaporating flask to a safe position in case of power failure.

3.  5L heating bath with wide temperature range from room temperature to 180°C.

4. Overheating protection temperature at 220 °C.

5.  Boil-dry protection, automatically power off if heating without water/oil in the heating bath.

6.  Speed range from 20 to 280rpm, and interval operation in clockwise.

7. Condenser (cooling surface 1700cm²) with excellent cooling effect.

8. Ejection mechanism ensures easy removal of evaporating flask.

9. Double spring sealing ring made of PTFE provides an excellent sealing performance

Model

RE100-Pro

Evaporating Flask Volume

50-3000mL(Optional Thickened glass axis

compatible with 3L evaporating flask)

Motor Type

Brushless DC motor

Speed Range

20-280rpm

Display

LCD(speed, temperature, time)

Direction of Rotation

Clockwise and counterclockwise

Heating Temperature Range

Room temp. to 180℃

Control Accuracy

water: ±1℃ oil: ±3℃

Evaporation capacity

Max.1.56L/h(H2O)

Heating Power

1300W

Lift stroke

Motorized 150mm

Timer

Yes

Time Setting Range

1-999min

Dimension[D×W×H]

465x457x583mm

Weight

15kg

Permissible Ambient Temperature

5-40℃

Permissible Relative Humidity

80%RH

Protection Class

IP20

USB Interface

Yes

Voltage/Frequency

100-120/200-240V,50/60HZ

Power

1400W
