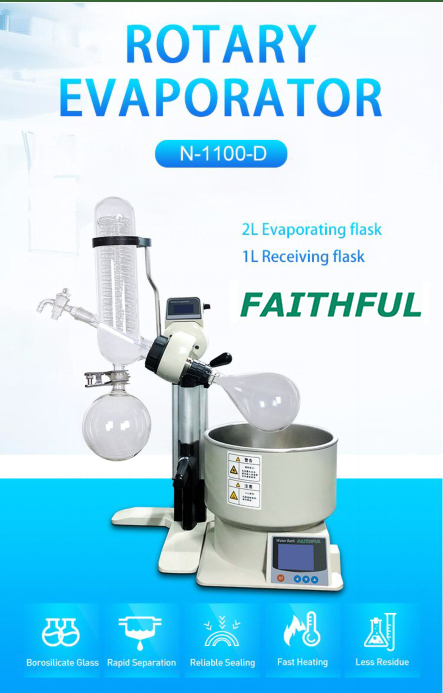

Model | N-1100-D |
Rotary Speed (Rpm) | 10~180 |
Evaporating Speed (ml/min) | 20 |
Achievable Vacuum (Pa) | 399.9 (below 3mmHg) |
Temperature Range (℃) | Room temp~100 |

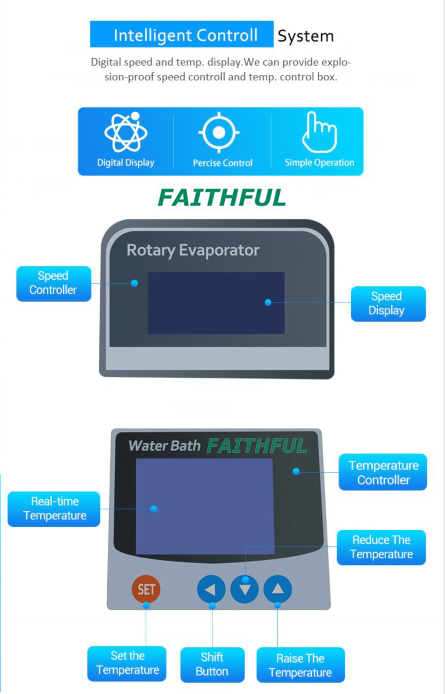

Temperature Display | Keypad input Digital display |
Speed-Setting | Knob setting ,Digital display |
Safety Functions | Fuse |
Functions of Lifting Table | Weight balancing Gliding elevating+ manual lifting |
Rotary Motor (W) | 25 |
Heater Power (KW) | 1.5 |

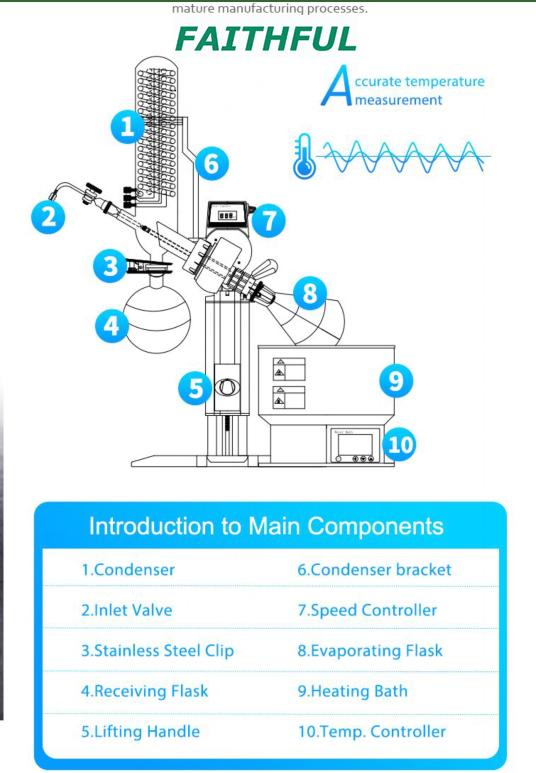

Condenser Model | Lean type water refrigerating |
Rotary Bottle (L) | 1~2 |
Collecting Bottle (L) | 1 |
Vacuum Sealing | Double sealing rings made of Teflon+ Vinton materials |
Water Bath Size and Volume (L) | φ260×140·7.4 |
Elevating Stroke (mm) | 100+150 |
Ambient Temperature (℃) | 5~35 |
Dimensions (mm) | 750L×320W×540H |
Weight (kg) | 9.5 |
Power Supply (V/Hz) | 220/50 |
