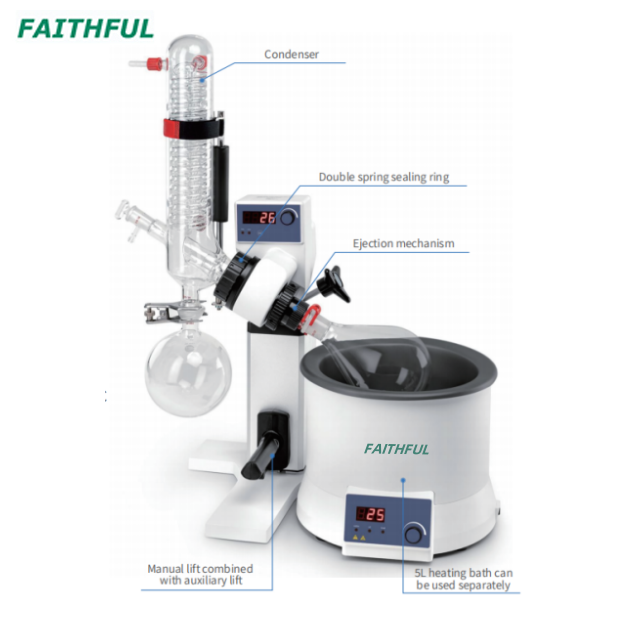

LED Digital Rotary Evaporator is a basic chemical laboratory instrument suitable for evaporation, distillation and separation of chemicals. It can be used as a multifunctional system in combination with vacuum pump, vacuum controller and low temperature circulators to provide excellent distillation solutions in many laboratory applications.
LED Digital Rotary Evaporator is a basic chemical laboratory instrument suitable for evaporation, distillation and separation of chemicals. It can be used as a multifunctional system in combination with vacuum pump, vacuum controller and low temperature circulators to provide excellent distillation solutions in many laboratory applications.
Specifications
RE100-S
Evaporating Flask Volume
50-3000mL(Optional Thickened glass axis compatible with 3L_ evaporating flask)
Motor Type
Brushless DC motor
Speed Range
20-200rpm
Display
LED(speed, temperature, time)
Direction of Rotation
Clockcwise and counterclockwise
Heating Temperature Range
Room temp. to 180"℃
Control Accuracy
water:土1'℃ oil:土3'℃
Evaporation capacity
Max.1.56L/h(H20)
Heating Power
1200W
Lift stroke
Manual 110mm+auxiliary 100mm
Interval Time Setting Range
1-9995
Dimension[DxWxH]
Main Unit440×320×450mm Heating Bath:300× 300×240mm
Weight
Main Unit:7kg Heatíng Bath:3kg
Permissible Ambient Temperature
5-40C
Permissible Relative Humidity
80%RH
Protection Class
IP20
USB Interface
Yes
Voltage/Frequency
100-120/200-240V, 50/60Hz
Power
1245W
