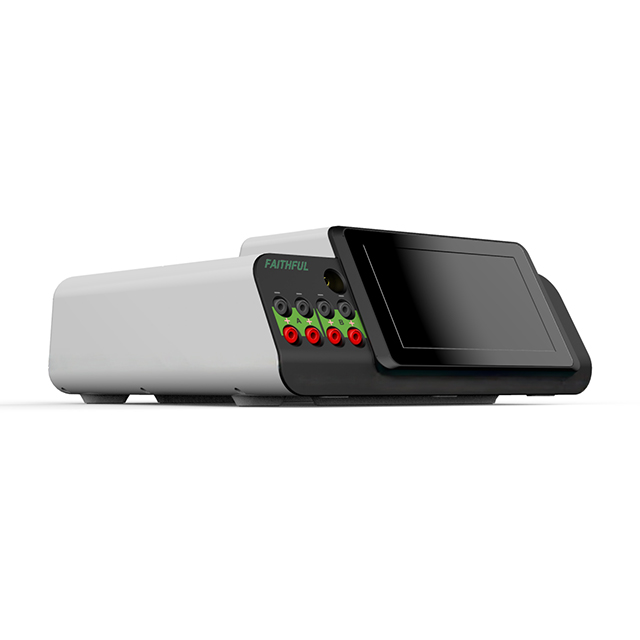

Model | FL-500ST |
Dual-channel Input | Each channel can be set to run different electrophoresis parameters simultaneously, enabling dual-use with one machine |
One Machine with Multiple Tanks | Capable of running four electrophoresis tanks simultaneously |
Output Mode | Continuously adjustable constant voltage, constant current, and constant power |
Output Range | 5-500V / 1-3000mA / 1-500W |
Resolution | Voltage (1V), Current (1mA), Power (1W) |
Timing Range | 1min~99h59min |
Stored Programs | 10 programmable, savable, and recallable programs |
Memory Recovery | Automatically memorizes and restores operating parameters before shutdown or power failure |
Step Function | Each program can run in up to 10 steps, enabling automatic sequential operation of stacking gel and separating gel in protein electrophoresis |
Protection Function | Overcurrent, overload, over-temperature, no-load, short-circuit, and sudden load change protection functions |
Touch Operation | 7-inch touch screen with an automatically generated numeric keypad for settings |
Display Function | Screen displays clock, timer, and set/actual values of voltage, current, and power |
Auto-generation | When one parameter is fixed, the maximum values of the other two are automatically generated |
12V Output | Can independently output 12V DC voltage to power devices such as blue light illuminators |
Dimensions | 30*30*13cm |
Weight | 3kg |
