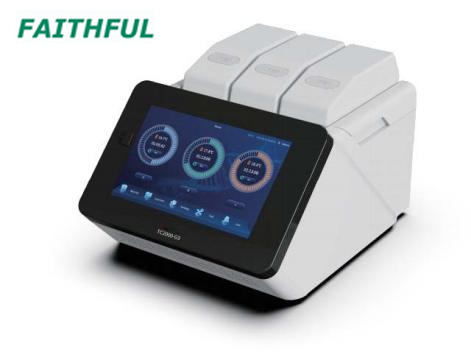

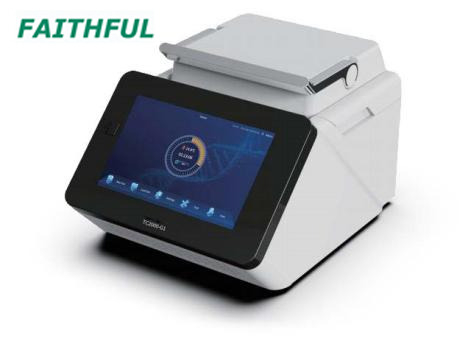

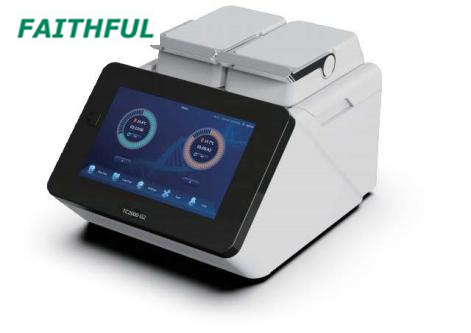

TC2000-G1/G2/G3 Thermal Cycler Gradient

TC2000-G1/G2/G3 is an indispensable laboratory instrument in the field of molecular biology, which can be used for gene sequencing, gene cloning, gene expression, mutation, and plays an important role in various fields such as agriculture, food testing, environmental science, drug development and so on.
Availability:
Quantity:
  • TC2000-G1 , TC2000-G2,TC2000-G3

  • FAITHFUL

Feature:

1. 10-inch large screen new Ul interface, divided into single-channel / dual-channel / three-channel, to meet different experimental requirements.

2. With advanced gradient temperature control technology, high-performance and long-lasting Peltier refrigeration and heating, which can achieve precise temperature control in zones.

3. Multi-channel module design, can run several different PCR gradient programs at the same time, to achieve multi-purpose machine.

4. Self-adaptive pressure lever hot cap, close and tighten the cap in one step, can be adapted to different heights of test tubes.

5. Supports up to 199 cycles to perform the next operation, and runs a countdown disc to visually display the remaining time.

6. Edge temperature compensation technology for good temperature uniformity and gradient settings for easy optimisation of experimental conditions.

7. Real-time display of the running status of the programme, you can set the security account and password according to customer demand.

8. Automatic power failure protection, automatically execute unfinished cycles after power restoration to ensure the safe operation of the whole amplification process.

9. Hot lid temperature and hot lid operating mode can be set to meet different experimental application requirements.

10. USB interface, support for U-disk storage/reading PCR data, support for U-disk software update, can be customised to meet the function of multiple file storage, support for Touch down PCR and Long PCR experiments.

11. Compatible with common 0.2mL PCR tubes, PCR-8Strips and 96-well PCR plates (no skirt, full skirt, half skirt).


Model

TC2000-G1

TC2000-G2

TC2000-G3

Sample Capacity

96×0.2mL PCR tube 12x PCR-8 strips

96 PCR Microplate

96x0.2ml PCR

12xPCR-8 strips

96x0.2ml PCR

12xPCR-8 strips

Module

1x96

2x48

3x32

Heating Temperature Range /°C

0-105

0-105

0-105

Lid Temperature Range /°C

30-115

30-115

30-115

Temperature Display /°C

0.1

0.1

0.1

Temp Control Accuracy/°C

±0.1

±0.1

±0.1

Temperature uniformity@55℃

±0.2

±0.2

±0.2

Max. Heating/Cooling Rate

5°C/Sec

5°C/Sec

5°C/Sec

Gradient Temp. Setting Range /℃

30-105

30-105

30-105

Gradient Range /℃

1-42, enter 0 to turn off the gradient.

1-25, enter 0 to turn off the gradient.

1-25, enter 0 to turn off the gradient.

Temperature Control Method

Block/Tube

Block/Tube

Block/Tube

Adapter Block Material

Aluminum

Aluminum

Aluminum

Display

10’LCD 1280x800

10’LCD 1280x800

10’LCD 1280x800

Input

Touch panel

Touch panel

Touch panel

Power Off Protection

Yes

Yes

Yes

Skip to The Next Step

Yes

Yes

Yes

Communication Interface

USB2.0, WiFi

USB2.0, WiFi

USB2.0, WiFi

Number of Program Stores

20000+ (USB FLASH)

20000+ (USB FLASH)

20000+ (USB FLASH)

User Defined File System

Up to 30 steps and 199 cycle in a single program

Power Supply

100-240V,50/60HZ,600W

Dimension [WxDxH]

422x310x264mm

422x310x261mm

422x310x252mm

Weight

11kg

11kg

11kg
