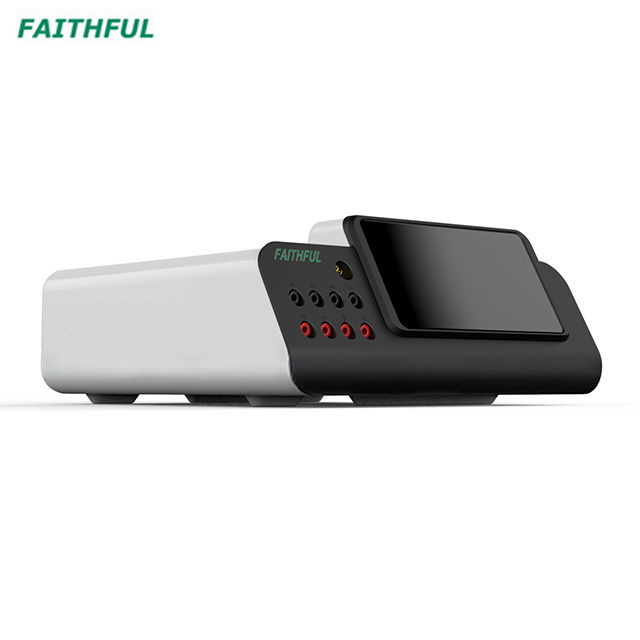

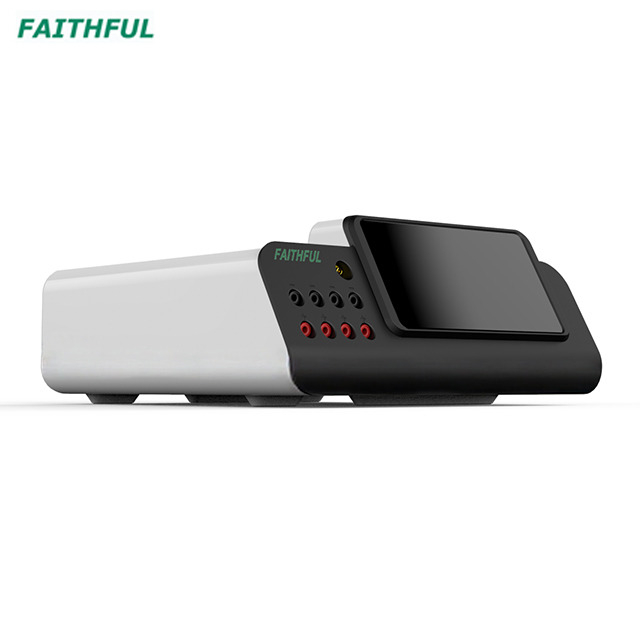

Model | FL-600C | FL-600D |
Input Range | 110~250V |
Four Output Channels | High current output, allowing connection of four electrophoresis tanks simultaneously |
Output Mode | Constant voltage, constant current, constant power are continuously adjustable, stable and reliable |
Output Range | FL-600C: 5-600V/1-600mA/5-300W FL-600D: 5-600V/1-1200mA/5-500W |
Resolution | Voltage（1V）；Current（1mA）; Power (1W) |
Timing Range | 1min~99h59min |
Temperature Detection | -20℃~+85℃ |
Step Storage | Capable of editing and saving 10 programs, and each program can run in 10 steps. |
Protection Function | Protection functions against overcurrent, overload, overtemperature, no-load, short circuit and sudden load change. |
Microcurrent | After the timed operation is completed, the microcurrent output can be maintained if no manual shutdown is performed. |
Display Screen | 7-inch large touch screen for easy operation; a numeric keypad is automatically generated during setup. It displays the clock, real-time temperature, operating status, and various prompt messages. |
Automatic Setting | When one parameter among constant voltage, current or power reaches its limit, the other two will automatically rise to their maximum values without manual adjustment. |
Dimensions | 30*30*325px |
Weight | 2.5kg |
