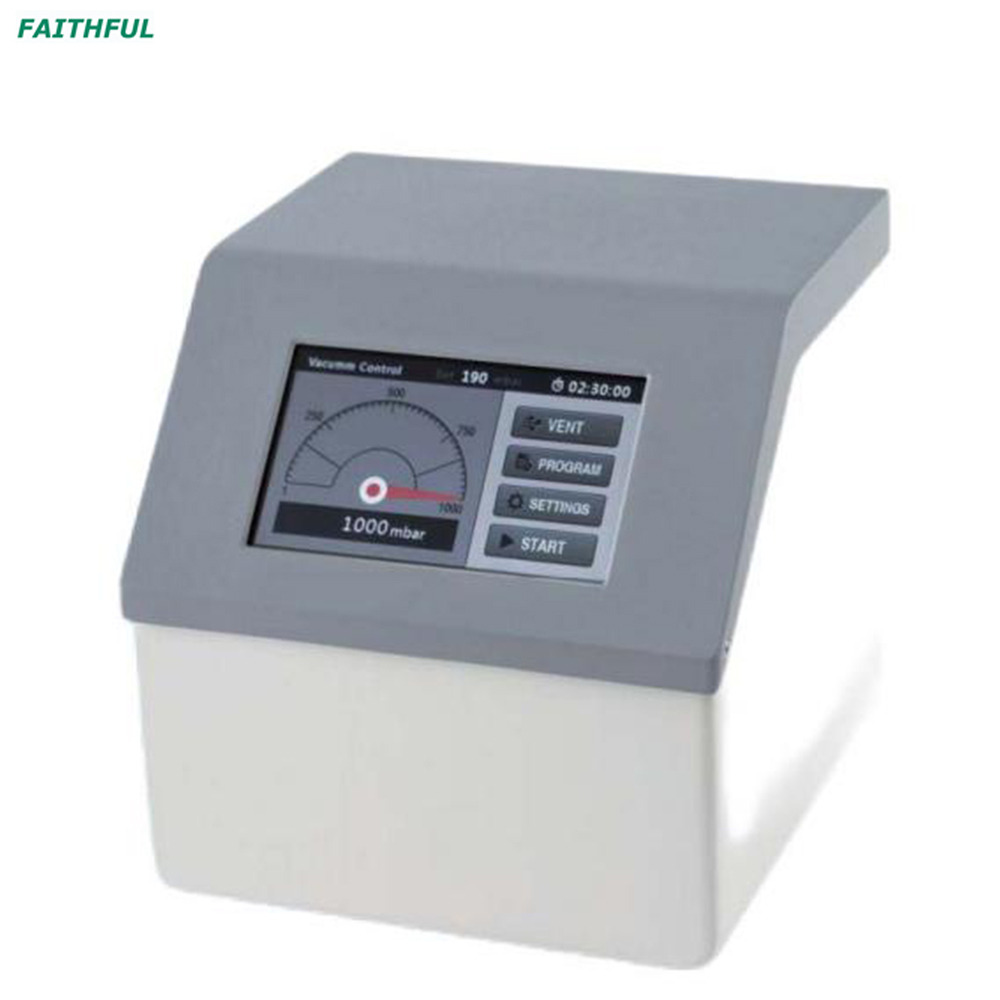

VC100
FAITHFUL
1. Wide range of measurement and control, 1-1000mbar.
2. Two control modes.
3. Stores up to 5 programs, each containing up to 5 steps of programming control.
4. Large TFT touch screen display control.
5. All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials which effectively resists corrosion caused by organic solvents, water, acid and alkali.
6. Built-in vent valve can feed inert gas into system equipment.
7. One-click decompression.
8. Operated in the normally open status of pump.
1. Wide range of measurement and control, 1-1000mbar.
2. Two control modes.
3. Stores up to 5 programs, each containing up to 5 steps of programming control.
4. Large TFT touch screen display control.
5. All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials which effectively resists corrosion caused by organic solvents, water, acid and alkali.
6. Built-in vent valve can feed inert gas into system equipment.
7. One-click decompression.
8. Operated in the normally open status of pump.
Model | VC100 |
Vacuum setting range | 1-1000mbar |
Vacuum measurement range | 1-1000mbar |
Control mode | Single-point control mode,Programmed control mode |
Control program | Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time) |
Setting method | Touch screen setting |
Display | 5'' TFT |
Sensor overload pressure | 1500mbar |
Connector diameter | 8mm |
Materials in contact with vapor | PTFE, PP, silicone and ceramics |
Power | 600W |
Compatible conditions with vacuum pump | Power of 50Hz vacuum pump ≤400W Power of 60Hz vacuum pump ≤500W |
Overall dimensions(W*D*H) | 189x207x193mm |
Weight | 4.0kg |
Voltage,Frequency | 100-120/200-240V,50/60HZ |
Operating environment | 10℃ ~40℃ ≤80%RH |
Model | VC100 |
Vacuum setting range | 1-1000mbar |
Vacuum measurement range | 1-1000mbar |
Control mode | Single-point control mode,Programmed control mode |
Control program | Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time) |
Setting method | Touch screen setting |
Display | 5'' TFT |
Sensor overload pressure | 1500mbar |
Connector diameter | 8mm |
Materials in contact with vapor | PTFE, PP, silicone and ceramics |
Power | 600W |
Compatible conditions with vacuum pump | Power of 50Hz vacuum pump ≤400W Power of 60Hz vacuum pump ≤500W |
Overall dimensions(W*D*H) | 189x207x193mm |
Weight | 4.0kg |
Voltage,Frequency | 100-120/200-240V,50/60HZ |
Operating environment | 10℃ ~40℃ ≤80%RH |
